MAKROFON M125/130b-160b ZVE(E)(H)

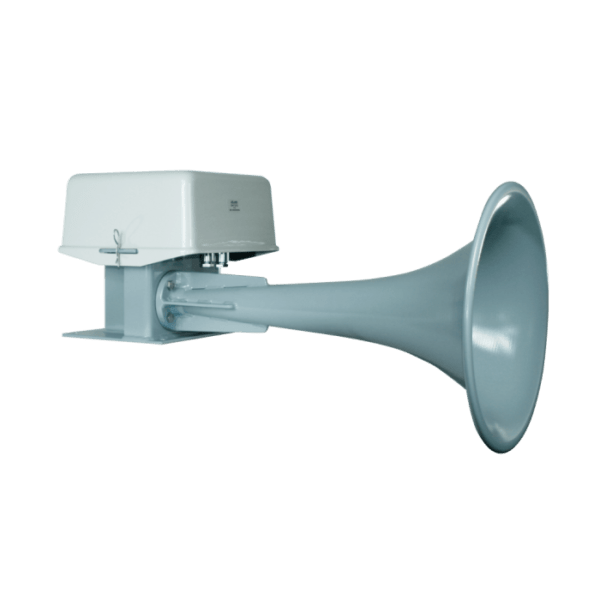

The ZÖLLNER MAKROFON M125 is a diaphragm sound transmitter operating on compressed air.
The signal is released by an electromagnet or manually using a hand pull-rope. To avoid the costly laying of a pull-rope, a second electromagnet for emergency voltage can be provided.
A thermostat controlled anti-condensation heating keeps the sound horn and the operating valve free from condensed water and thus from ice.
Typically the MAKROFON M125 will operate on air pressures between 7 and 40 bar.
For electric release and operation of the heating a connection to 230 or 115 V AC
1 phase or 24 V DC power supply is required.
